Chevron conveyor belts in Yorkshire

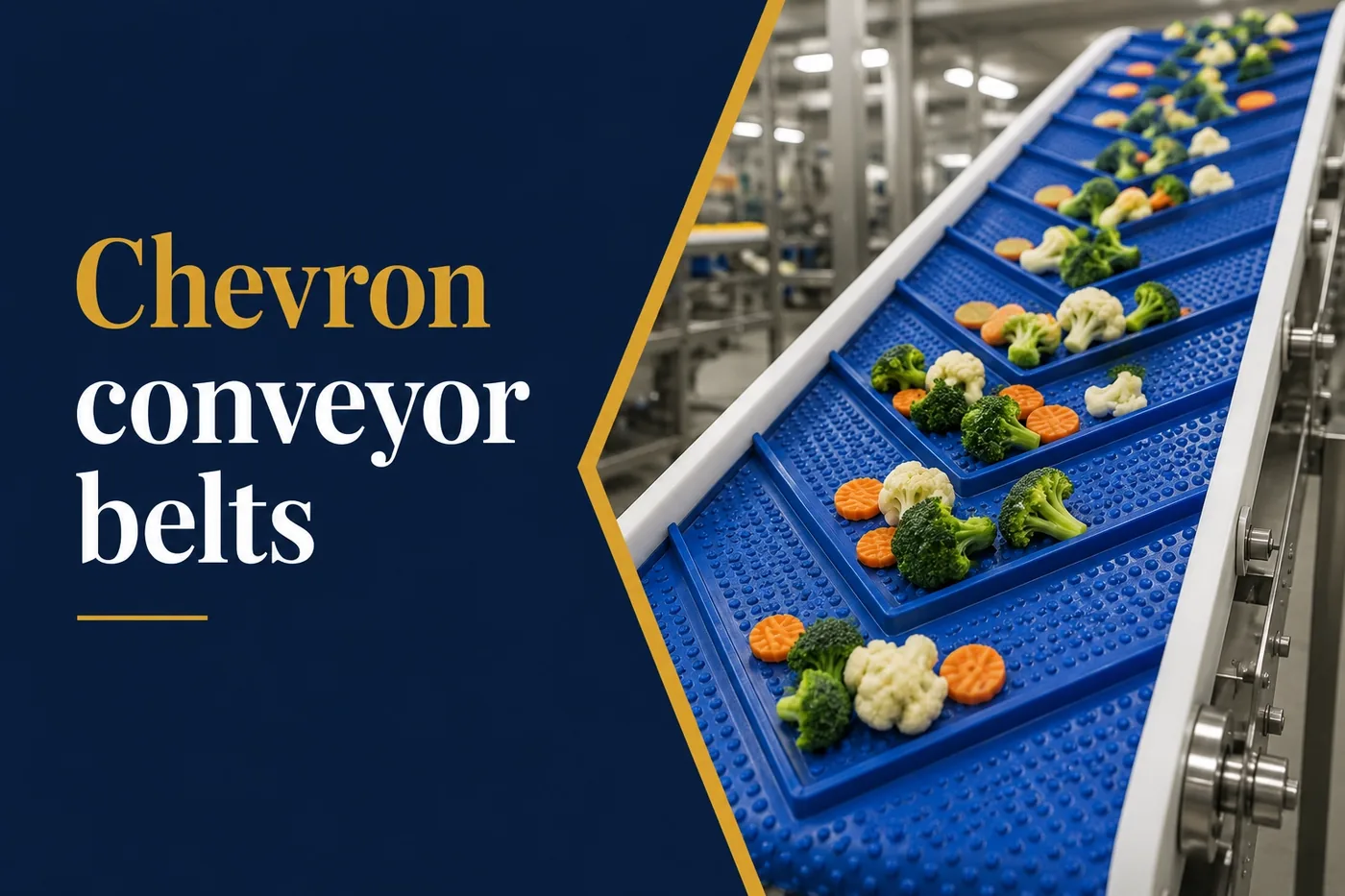

Blue chevron-pattern conveyor belt transporting broccoli, cauliflower, and sliced carrots through a food processing facility.

Once a conveyor tilts beyond a certain angle, a flat belt stops being enough, product slides back down as fast as it goes up.

Chevron belts solve that with a moulded pattern built into the belt surface itself, giving loose or bulk material something to grip on an incline that would otherwise beat a smooth belt.

If you're moving material up a slope and need to know which pattern actually suits your application, here's what you need to know.

Start your 2-minute survey✓ Takes less than 2 minutes • ✓ No obligation • ✓ Response within 24 hours

What is a chevron conveyor belt?

A chevron conveyor belt is a standard PVC, rubber, or food-grade belt with a raised pattern moulded directly into its top cover, usually a V-shaped or arrow-shaped profile, running across the belt at regular intervals.

That pattern is what gives inclined conveying its grip, without it, a smooth belt relies purely on friction, and friction alone runs out fast once the angle steepens.

Chevron patterns aren't the same as cleats.

Cleats are separate, taller strips fixed perpendicular to the belt, generally used for steeper inclines or bulkier loads.

Chevron profiles are shallower and moulded into the cover as part of the belt itself, suited to moderate inclines and a wider range of material types.

Which one you actually need comes down to your incline angle and what's moving across the belt, not just "which one looks more heavy duty."

Get the pattern and base material right and you can run a much steeper incline than a flat belt would allow, often saving real floor space in the process.

Get it wrong and you're either losing product back down the slope or paying for a pattern more aggressive than the job needs.

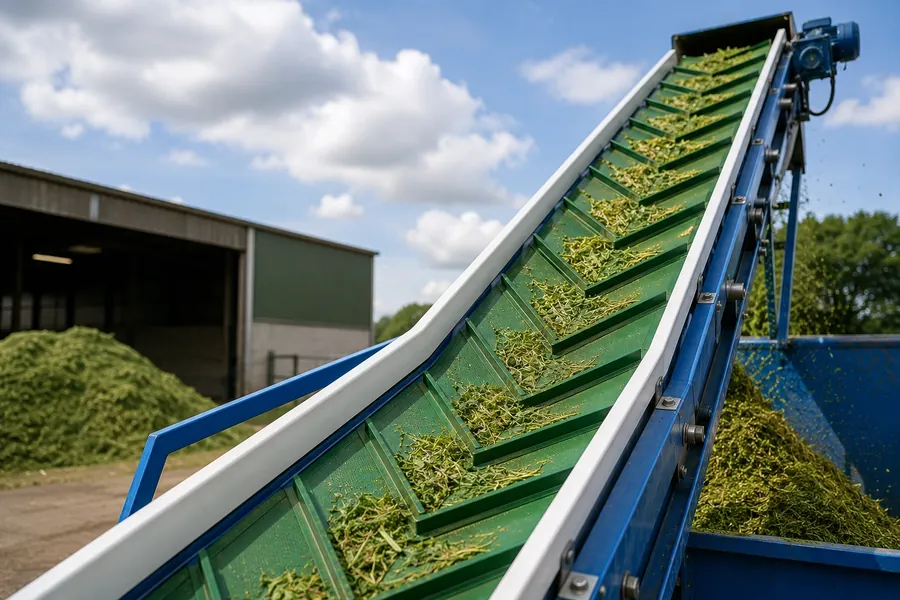

Green chevron-pattern conveyor belt carrying chopped silage up an incline into a trailer on a farm.

Benefits of chevron conveyor belts

Prevents rollback

The moulded pattern grips loose or bulk material on an incline that would simply slide back down a flat belt.

Steeper inclines, less floor space

A correctly specified chevron profile lets you run a steeper angle than a flat belt would manage, useful where floor space is tight.

Reduces spillage

Material held on the belt properly means less product lost over the sides or back down the incline during transit.

Extends usable conveyor design

Incline handling that would otherwise need a completely different conveyor layout can often be solved with the right chevron spec instead.

Available on PVC or rubber

The chevron pattern moulds onto either base material, so you're not limited to one belt type just because you need incline grip.

Multiple pattern options

Chevron, cleated, and rough-top profiles each suit different incline angles and material types, it isn't one-size-fits-all.

Repairable and spliceable

Like standard PVC and rubber belts, chevron belts can be repaired and joined by a specialist, the pattern doesn't change how the belt is serviced.

Works with loose and bulk materials

Grain, aggregate, packaged goods on a slope, chevron profiles handle a wide range of product types.

Common industries

Industries that use chevron conveyor belts

  • Quarrying and aggregates

    Moving crushed stone, sand, and gravel up an incline from crushers and screens, where a flat belt simply can't hold the load.

  • Agriculture

    Grain, feed, and root crop handling, particularly on portable and incline conveyors used at harvest.

  • Mining and extraction

    Bulk material moved over long inclined runs, often specified alongside high-tensile carcass constructions.

  • Recycling and waste

    Mixed, loose material moving through sorting and transfer lines that include inclined sections.

  • Packaging and distribution

    Boxes and packaged goods moving up an incline between levels of a warehouse or distribution facility.

  • General bulk handling

    Any operation moving loose material between levels, silos, hoppers, and elevated loading points among the most common.

Choosing the right chevron conveyor belt

Chevron belts fail early for a specific, avoidable reason: the pattern doesn't match the incline or the material.

Here's what to get right.

Pattern profile Conveyor belt specification card covering material selection with a key takeaway summary. Pattern profile Chevron patterns suit moderate inclines and a wide range of material types. A deeper, closer-pitched chevron profile extends grip to steeper inclines and bulkier loads without changing belt type. A shallower chevron pattern reliably carries lighter loads without using a more aggressive profile than needed. Match the pattern to the actual incline rather than choosing the heaviest-looking profile. Pick the pattern for your incline and material, not how aggressive it looks.
Incline angle Conveyor belt specification card covering material selection with a key takeaway summary. Incline angle Beyond roughly 15–18°, a flat belt starts losing product back down the slope. Steeper angles call for a deeper, closer-pitched chevron profile as the incline increases. Wetter or more free-flowing material may need additional grip at a shallower angle. A specialist assessing your conveyor will give a more accurate recommendation than a general rule. When in doubt, check the actual incline rather than relying on a rule of thumb.
Base material Conveyor belt specification card covering material selection with a key takeaway summary. Base material Chevron patterns are moulded onto PVC, rubber and food-grade compounds. PVC suits lighter, cleaner applications with minimal abrasion or impact. Rubber handles heavier, more abrasive and outdoor conditions. Food-grade compounds provide washdown capability and hygiene compliance. The pattern doesn't change what the compound needs to handle.
Material type and load Conveyor belt specification card covering material selection with a key takeaway summary. Material type and load Loose, free-flowing material often needs different pattern spacing than bulkier packaged goods. Heavier loads usually need a taller, more pronounced chevron profile. Irregular-shaped items may need a different profile than uniform materials. The material being conveyed should drive the pattern choice, not the incline alone. Let the material - not just the angle decide the pattern.
Pattern wear Conveyor belt specification card covering material selection with a key takeaway summary. Pattern wear The moulded chevron pattern wears alongside the belt over time. A worn profile loses grip well before the belt reaches the end of its life. Routine inspections help identify wear before rollback becomes a problem. Waiting until the belt fails can mean months of reduced grip and performance. Check the pattern, not just the belt, every time you inspect.
Pattern pitch and spacing Conveyor belt specification card covering material selection with a key takeaway summary. Pattern pitch and spacing Pattern pitch, the spacing between chevron ridges, should match the material being conveyed. Wider pitch suits larger, bulkier materials, while tighter pitch holds finer products more effectively. Incorrect pitch allows material to settle between the ridges instead of riding on them. Pitch and pattern height should both be selected for the application. Get the spacing right for the material, not just the pattern height.
Summary - get it right Conveyor belt pattern profile summary card with six key decision rows. Summary – get it right Pattern profile Incline angle Base material Material typeand load Pattern wear Patternpitch andspacing Match to your inclineand material, notappearance. Confirm your actualangle before assumingchevron is enough. Choose PVC, rubber,or food-grade as youwould for a flat belt. Let the load drivethe pattern, not justthe angle. Inspect the patternitself, not justthe belt. Match the spacingto the size ofthe material.
The Bottom Line Conveyor belt specification card covering material selection with a key takeaway summary. The bottom line The right chevron specification keeps material moving up an incline that would defeat a flat belt. The wrong one still lets product slide back, or wears out its grip long before the belt itself is finished. Get the pattern and material right before you install.

Why choose Yorkshire Conveyor Belts?

We make finding the right conveyor belt specialist simple.
Finding the right supplier shouldn't mean ringing five different companies or hoping you've found the right one.

We're not a supplier.

We connect Yorkshire businesses with conveyor belt specialists who are, people who supply, install, and maintain chevron belting across the region and know how to match a pattern to an incline rather than just sell whichever one's in stock.

Tell us what you need and we'll match you with someone who can actually help.

We cover Leeds, Sheffield, Bradford, Hull, Doncaster, Wakefield, and the wider Yorkshire area.

Why businesses use us

🏆Trusted local specialists

Vetted conveyor belt experts across Yorkshire.

⚡24-hour response

Fast replies when production can't wait.

🛡No obligation

Advice first. Decide when you're ready.

🏭Industrial expertise

Warehousing, manufacturing, food and logistics.

🏭Fast, simple process

Complete one 2-minute survey

✔Right specification

We help you avoid costly mistakes.

📍Yorkshire coverage

Leeds, Sheffield, Hull, Bradford, Doncaster and beyond.

Still need help choosing the right belt?

Chevron conveyor belt FAQs

Need a chevron conveyor belt in Yorkshire?

What are chevron conveyor belts used for?

Any application moving loose or bulk material up an incline, quarrying, recycling, agriculture, packaging, and mining among the most common. Anywhere a flat belt would let product slide back down the slope.

What's the difference between chevron and cleated conveyor belts?

Chevron patterns are moulded into the belt's cover as part of the belt itself, generally suited to moderate inclines. Cleats are separate, taller strips fixed to the belt, typically used for steeper inclines or bulkier loads. Which one you need depends on your specific incline and material, not which sounds more heavy duty.

Can chevron belts be made from rubber or only PVC?

Both. The chevron pattern moulds onto either base material, so the choice between PVC and rubber comes down to the same factors as a flat belt, load, abrasion, and environment, rather than being limited by the pattern itself.

At what incline angle do I need a chevron belt?

As a general guide, beyond roughly 15 to 18 degrees, a flat belt starts losing product back down the incline. Wetter or more free-flowing material can need the fix at a shallower angle still. A specialist reviewing your actual conveyor will give a more precise answer than a general rule of thumb.

How long do chevron conveyor belts last?

Similar factors to a standard belt of the same base material, load, abrasion, and maintenance, plus one extra: the pattern itself wears over time and can lose grip before the underlying belt is finished. Regular inspection of the pattern specifically extends useful life.

What maintenance does a chevron conveyor belt need?

The same tracking, tension, and surface checks as any conveyor belt, plus regular inspection of the pattern's condition. A worn-down chevron profile causes rollback long before the belt itself needs replacing, so catching pattern wear early matters more here than on a flat belt.
